Motion Mimic PPO

Module: rsl_rl.algorithms.mmppo

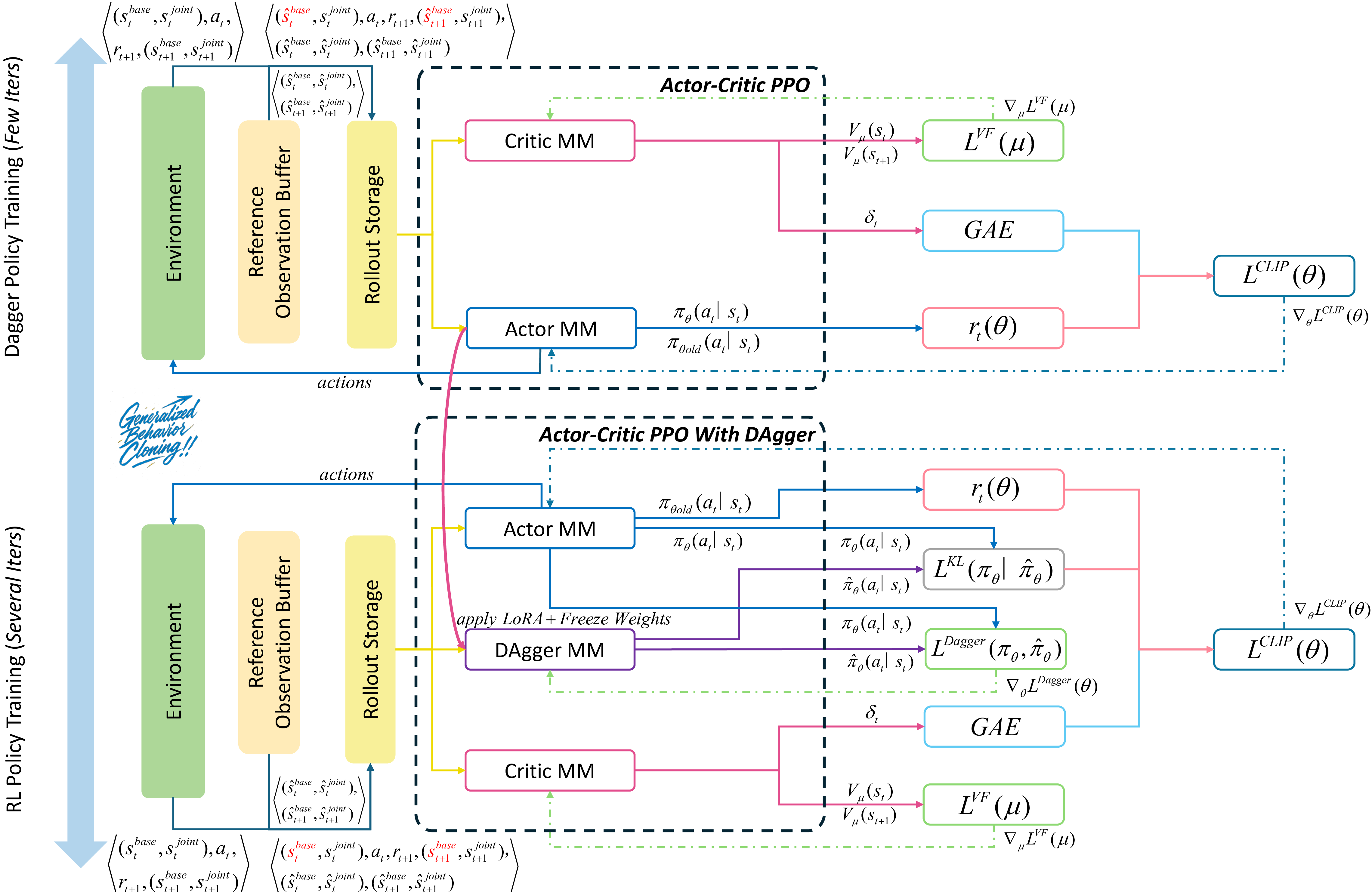

MMPPO Architecture

🎯 Algorithm Overview​

DAgger-MMPPO (Motion Mimic Proximal Policy Optimization) is a novel two-stage reinforcement learning framework that combines the Dataset Aggregation (DAgger) algorithm with PPO training logic for whole-body humanoid robot motion learning. Unlike direct teleoperation, MMPPO enables robots to learn human-like motion patterns through behavior cloning, addressing the challenge of mapping reference motions to executable robot actions.

🏗️ Core Concepts​

🎭 Two-Stage Training Framework​

Stage 1: DAgger Policy Training

  • Simplified physical environment with fixed robot base
  • Focus on joint-level motion cloning using expert demonstrations
  • Learn initial policy π_D that approximates optimal imitation policy
  • State substitution: Replace agent base state with expert reference state

Stage 2: Policy Training with DAgger

  • Full physical environment with task and imitation rewards
  • LoRA-enhanced DAgger network for adaptive expert reference
  • Dual optimization: actor improvement + DAgger network fine-tuning
  • Integration with AMP and symmetry constraints

🎯 Key Innovations​

  • State Space Decomposition: Split robot state into base and joint components
  • Reference State Mapping: Expert state substitution for ideal base control simulation
  • LoRA Integration: Low-rank adaptation for efficient DAgger network fine-tuning
  • Multi-Modal Learning: Support for various auxiliary learning modules (RND, AMP, Symmetry)

🧮 Mathematical Foundation​

📊 MDP Formulation​

The robot behavior cloning task is formulated as an MDP: (S, Ŝ, A, R, R̂, T, γ)

  • S: Agent's state space
  • Ŝ: Expert reference state space
  • A: Agent's action space
  • R(s_t, a_t, s_next): Intrinsic task reward
  • R̂((s_t, ŝ_t), a_t, (s_next, ŝ_next)): Imitation reward
  • T(s_next | s_t, a_t): State transition probability
  • γ ∈ [0,1): Discount factor

🎯 Policy Definition​

The policy is defined as:

a_t = π(o_t, ô_t)  if ô_t ≠ None
a_t = π(o_t)       if ô_t = None

Where:

  • a_t: Action at time t
  • π: Policy function
  • o_t: Current observation
  • ô_t: Reference observation (may be None)

📈 Loss Functions​

Imitation Loss (KL Divergence):

L_KL(π_θ | π̂_θ) = E[s_t ~ D][-log π_θ(â_t | s_t)]

DAgger Loss:

L_DAgger(â_t_Dagg, a_t_Actor, ρ) = (1-ρ) * norm_2(â_t_Dagg - a_t_Actor)²

🧠 Core Components​

📐 Loss Functions​

🔧 SmoothL2Loss​

Module Name: rsl_rl.algorithms.mmppo.SmoothL2Loss

Definition:

class SmoothL2Loss(nn.Module):
    def __init__(self, delta: float = 1.0)

📥 Parameters:

  • delta (float): Threshold for switching between quadratic and linear loss. Default is 1.0

🔧 Functionality: Huber loss implementation that combines L2 loss for small errors and L1 loss for large errors:

loss(x) = 0.5 * x²               if |x| < delta
          delta * (|x| - 0.5*delta)  otherwise

🔧 L2Loss​

Module Name: rsl_rl.algorithms.mmppo.L2Loss

Definition:

class L2Loss(nn.Module):
    def __init__(self)

🔧 Functionality: Standard L2 (mean squared error) loss function: loss = mean((input - target)²)

🤖 MMPPO Algorithm​

Module Name: rsl_rl.algorithms.mmppo.MMPPO

Definition:

class MMPPO:
    def __init__(self, actor_critic, num_learning_epochs=1, num_mini_batches=1,
                 clip_param=0.2, gamma=0.998, lam=0.95, value_loss_coef=1.0,
                 entropy_coef=0.0, learning_rate=1e-3, max_lr=1e-2, min_lr=1e-4,
                 # DAgger parameters
                 teacher_coef=None, teacher_loss_coef=None, teacher_lr=5e-4,
                 teacher_supervising_intervals=0, teacher_updating_intervals=0,
                 teacher_apply_interval=5, teacher_coef_mode="kl",
                 # Auxiliary modules
                 rnd_cfg=None, symmetry_cfg=None, amp_cfg=None,
                 # Training configuration
                 multi_gpu_cfg=None, auto_mix_precision=False, **kwargs)

📥 Core Parameters​

PPO Configuration:

  • actor_critic (ActorCriticMMTransformer): Multi-modal actor-critic network
  • num_learning_epochs (int): Number of learning epochs per update. Default is 1
  • num_mini_batches (int): Number of mini-batches per epoch. Default is 1
  • clip_param (float): PPO clipping parameter. Default is 0.2
  • gamma (float): Discount factor. Default is 0.998
  • lam (float): GAE lambda parameter. Default is 0.95
  • value_loss_coef (float): Value function loss coefficient. Default is 1.0
  • entropy_coef (float): Entropy regularization coefficient. Default is 0.0

Learning Rate Management:

  • learning_rate (float): Base learning rate. Default is 1e-3
  • max_lr (float): Maximum learning rate. Default is 1e-2
  • min_lr (float): Minimum learning rate. Default is 1e-4
  • max_lr_after_certain_epoch (float): Max LR after restriction epoch. Default is 5e-3
  • max_lr_restriction_epoch (int): Epoch to start max LR restriction. Default is 25000

📥 DAgger Parameters​

Core DAgger Configuration:

  • teacher_coef (float | None): DAgger coefficient (None disables DAgger). Default is None
  • teacher_loss_coef (float | None): Imitation loss coefficient. Default is None
  • teacher_lr (float): DAgger network learning rate. Default is 5e-4
  • teacher_coef_mode (str): DAgger coefficient mode ("kl", "norm", "original_kl"). Default is "kl"

Training Schedule:

  • teacher_supervising_intervals (int): Epochs before DAgger supervision starts. Default is 0
  • teacher_updating_intervals (int): Epochs before DAgger updates start. Default is 0
  • teacher_apply_interval (int): Interval for applying imitation loss. Default is 5
  • teacher_update_interval (int): Interval for DAgger updates. Default is 1

📥 Auxiliary Module Configuration​

Random Network Distillation (RND):

  • rnd_cfg (dict | None): RND configuration dictionary. Default is None

Symmetry Learning:

  • symmetry_cfg (dict | None): Symmetry learning configuration. Default is None

Adversarial Motion Prior (AMP):

  • amp_cfg (dict | None): AMP discriminator configuration. Default is None

Distributed Training:

  • multi_gpu_cfg (dict | None): Multi-GPU training configuration. Default is None
  • auto_mix_precision (bool): Enable automatic mixed precision. Default is False

🎯 Core Methods​

🔄 Training Lifecycle​

📊 Storage Initialization​

def init_storage(self, training_type, num_envs, num_transitions_per_env,
                actor_obs_shape, actor_ref_obs_shape, critic_obs_shape,
                critic_ref_obs_shape, action_shape)

🔧 Function: Initializes rollout storage for experience collection with multi-modal observations.

🎭 Mode Control​

def test_mode(self)
def train_mode(self)

🔧 Function: Switch between training and evaluation modes for all network components.

🚀 Action Generation​

🎯 Action Selection​

def act(self, obs, ref_obs, critic_obs, ref_critic_obs)

📥 Input:

  • obs (torch.Tensor): Current observations
  • ref_obs (tuple): Reference observations (data, mask)
  • critic_obs (torch.Tensor): Critic observations
  • ref_critic_obs (tuple): Reference critic observations (data, mask)

📤 Output: Selected actions from the policy

🔧 Function: Generates actions using the actor-critic network and stores transition data including DAgger actions if enabled.

🔄 Environment Step Processing​

def process_env_step(self, rewards, dones, infos)

📥 Input:

  • rewards (torch.Tensor): Environment rewards
  • dones (torch.Tensor): Episode termination flags
  • infos (dict): Additional environment information

🔧 Function: Processes environment step, adds intrinsic rewards (RND, AMP), handles bootstrapping, and stores transitions.

📈 Learning Updates​

🧮 Return Computation​

def compute_returns(self, last_critic_obs)

📥 Input: last_critic_obs (torch.Tensor): Final critic observations for bootstrapping 🔧 Function: Computes returns and advantages using GAE (Generalized Advantage Estimation).

🔄 Main Update Loop​

def update(self, epoch=0) -> dict

📥 Input: epoch (int): Current training epoch 📤 Output: Dictionary containing loss statistics

🔧 Function: Main training update including:

  • PPO policy and value updates
  • DAgger network fine-tuning with LoRA
  • Auxiliary module updates (RND, AMP, symmetry)
  • Learning rate scheduling
  • Multi-GPU synchronization

🤝 Multi-GPU Support​

📡 Parameter Broadcasting​

def broadcast_parameters(self)
def broadcast_parameters_dagger(self)

🔧 Function: Broadcast model parameters from rank 0 to all GPUs.

🔄 Gradient Reduction​

def reduce_parameters(self)
def reduce_parameters_dagger(self)

🔧 Function: Collect and average gradients across all GPUs.

🎯 Loss Computation​

🔍 Imitation Loss​

def _imitation_loss(self, actions_batch, obs_batch, ref_obs_batch, dagger_actions_batch)

📥 Input:

  • actions_batch (torch.Tensor): Actor actions
  • obs_batch (torch.Tensor): Observation batch
  • ref_obs_batch (tuple): Reference observation batch
  • dagger_actions_batch (torch.Tensor): DAgger network actions

📤 Output: Imitation loss value

🔧 Function: Computes KL divergence loss between actor policy and DAgger targets using different modes:

  • "kl": Standard KL divergence
  • "original_kl": Original implementation KL
  • "norm": L2 norm-based loss

🎓 DAgger Update​

def update_dagger(self, actions_batch, obs_batch, ref_obs_batch, dagger_actions_batch)

📥 Input: Same as imitation loss 📤 Output: DAgger loss value

🔧 Function: Updates DAgger network using LoRA fine-tuning with smoothed L2 loss between DAgger predictions and teacher-student blended actions.

🎮 Training Algorithms​

🎯 Stage 1: DAgger Policy Training​

# Pseudocode for Stage 1
def stage1_training():
    # Initialize with simplified environment (fixed base)
    configure_simplified_env(fixed_base=True, prioritize_imitation=True)

    for iteration in range(N_iter):
        # Collect rollouts
        batch = collect_rollouts(policy=pi_theta)

        # State substitution: replace agent base with expert base
        for transition in batch:
            transition.state = (expert_base_state, agent_joint_state)

        # Compute rewards (heavily weighted towards imitation)
        rewards = w_R * task_reward + w_imitation * imitation_reward

        # PPO update
        for epoch in range(K):
            update_policy_and_value(batch, mini_batches=M)

    return trained_dagger_policy

🎯 Stage 2: Policy Training with DAgger​

# Pseudocode for Stage 2
def stage2_training():
    # Initialize actor from Stage 1, create LoRA-enhanced DAgger network
    actor = initialize_from_stage1()
    dagger_net = create_lora_enhanced_network(stage1_policy)

    for iteration in range(N_iter):
        # Collect rollouts in full environment
        batch = collect_rollouts(actor, full_environment=True)

        for epoch in range(K):
            for mini_batch in shuffle(batch):
                # Standard PPO losses
                surrogate_loss = compute_ppo_loss(actor, mini_batch)
                value_loss = compute_value_loss(critic, mini_batch)

                # Generate DAgger actions
                dagger_actions = dagger_net(observations, ref_observations)

                # Imitation loss (KL divergence)
                imitation_loss = compute_kl_loss(actor.distribution, dagger_actions)

                # Combined actor loss
                actor_loss = surrogate_loss + w_im * imitation_loss + value_loss

                # Update actor and critic
                update_networks(actor_loss)

                # DAgger network LoRA fine-tuning
                dagger_loss = (1-rho) * norm_2(dagger_actions - actor_actions)²
                update_lora_parameters(dagger_loss)

        # Anneal DAgger coefficient
        rho = anneal_schedule(rho, iteration)

    return trained_policy

🚀 Usage Example​

import torch
from rsl_rl.algorithms.mmppo import MMPPO
from rsl_rl.modules.actor_critic_mm_transformer import ActorCriticMMTransformerV2

# Define observation structure
term_dict = {
    "base_lin_vel": 3, "base_ang_vel": 3,
    "joint_pos": 19, "joint_vel": 19,
    "feet_contact": 4
}

ref_term_dict = {
    "ref_base_lin_vel": 3, "ref_joint_pos": 19,
    "ref_feet_contact": 4
}

# Create actor-critic model
actor_critic = ActorCriticMMTransformerV2(
    term_dict=term_dict,
    ref_term_dict=ref_term_dict,
    num_actions=19,
    history_length=5,
    dim_model=256,
    enable_lora=True  # Enable LoRA for DAgger
)

# Configure auxiliary modules
rnd_cfg = {
    "num_states": 48,
    "learning_rate": 1e-3,
    "reward_scale": 0.1
}

amp_cfg = {
    "net_cfg": {
        "backbone_input_dim": 96,  # 2 * state_dim
        "backbone_output_dim": 256,
        "activation": "elu"
    },
    "learning_rate": 1e-3,
    "gradient_penalty_coeff": 10.0,
    "amp_update_interval": 1
}

symmetry_cfg = {
    "use_data_augmentation": True,
    "use_mirror_loss": True,
    "data_augmentation_func": "my_module.mirror_observations"
}

# Create MMPPO algorithm
mmppo = MMPPO(
    actor_critic=actor_critic,
    # PPO hyperparameters
    num_learning_epochs=5,
    num_mini_batches=4,
    clip_param=0.2,
    gamma=0.99,
    lam=0.95,
    learning_rate=3e-4,

    # DAgger configuration
    teacher_coef=0.8,           # DAgger coefficient
    teacher_loss_coef=0.5,      # Imitation loss weight
    teacher_lr=1e-4,            # DAgger network learning rate
    teacher_coef_mode="kl",     # Use KL divergence mode
    teacher_apply_interval=5,    # Apply imitation loss every 5 iterations

    # Auxiliary modules
    rnd_cfg=rnd_cfg,
    amp_cfg=amp_cfg,
    symmetry_cfg=symmetry_cfg,

    # Training optimization
    auto_mix_precision=True,
    device="cuda"
)

# Initialize storage
mmppo.init_storage(
    training_type="motion_mimic",
    num_envs=4096,
    num_transitions_per_env=24,
    actor_obs_shape=(sum(term_dict.values()) * 5,),  # With history
    actor_ref_obs_shape=(sum(ref_term_dict.values()),),
    critic_obs_shape=(sum(term_dict.values()) * 5,),
    critic_ref_obs_shape=(sum(ref_term_dict.values()),),
    action_shape=(19,)
)

# Training loop
for epoch in range(10000):
    # Collect rollouts
    for step in range(24):  # num_transitions_per_env
        actions = mmppo.act(obs, ref_obs, critic_obs, ref_critic_obs)
        obs, rewards, dones, infos = env.step(actions)
        mmppo.process_env_step(rewards, dones, infos)

    # Compute returns and update
    mmppo.compute_returns(final_critic_obs)
    loss_dict = mmppo.update(epoch)

    print(f"Epoch {epoch}:")
    print(f"  Surrogate Loss: {loss_dict['mean_surrogate_loss']:.4f}")
    print(f"  Value Loss: {loss_dict['mean_value_loss']:.4f}")
    print(f"  Imitation Loss: {loss_dict['mean_imitation_loss']:.4f}")
    print(f"  DAgger Loss: {loss_dict['mean_dagger_loss']:.4f}")

    if 'mean_amp_loss' in loss_dict:
        print(f"  AMP Loss: {loss_dict['mean_amp_loss']:.4f}")

🎯 Key Features​

🔧 Auxiliary Learning Modules​

Random Network Distillation (RND):

  • Intrinsic motivation through prediction error
  • Encourages exploration in sparse reward environments
  • Configurable reward scaling and update frequency

Adversarial Motion Prior (AMP):

  • Style-based motion learning through discriminator
  • Automatic motion quality assessment
  • Gradient penalty for training stability

Symmetry Learning:

  • Data augmentation with mirrored observations
  • Mirror loss for consistent symmetric behaviors
  • Automatic handling of symmetric robot configurations

🚀 Performance Optimizations​

Mixed Precision Training:

  • Automatic mixed precision for faster training
  • Gradient scaling for numerical stability
  • Memory efficiency improvements

Multi-GPU Support:

  • Distributed training across multiple GPUs
  • Gradient synchronization and parameter broadcasting
  • Scalable to large-scale robot learning

Memory Management:

  • GPU memory monitoring and optimization
  • Efficient batch processing and storage
  • Automatic garbage collection integration

🔧 Implementation Notes​

⚠️ Important Considerations​

Stage Transition:

  • Stage 1 focuses on imitation with simplified physics
  • Stage 2 introduces full environment complexity
  • Proper initialization crucial for stable training

Hyperparameter Tuning:

  • teacher_coef: Start with 0.5-0.8, anneal gradually
  • teacher_loss_coef: 0.1-0.5 depending on task complexity
  • teacher_apply_interval: 5-10 for stable training

DAgger Network:

  • LoRA rank typically 8-16 for efficiency
  • Alpha parameter 16-32 for adaptation strength
  • Regular LoRA updates prevent overfitting

🚨 Common Issues​

Training Instability:

  • Monitor DAgger coefficient annealing schedule
  • Ensure proper gradient clipping (max_grad_norm=1.0)
  • Check for proper learning rate scheduling

Memory Issues:

  • Use auto_mix_precision=True for large models
  • Adjust num_mini_batches based on GPU memory
  • Monitor GPU memory usage with built-in debugging

Convergence Problems:

  • Verify expert data quality and coverage
  • Check state normalization consistency
  • Ensure proper reward balancing between task and imitation

📖 References​

Original Research:

MMPPO: Multi-Modal Proximal Policy Optimization for whole-body humanoid robot learning with expert demonstrations and multi-modal observations.

Key Algorithms:

  • PPO: Proximal Policy Optimization for stable on-policy learning
  • DAgger: Dataset Aggregation for expert-guided policy learning
  • LoRA: Low-Rank Adaptation for efficient network fine-tuning
  • GAE: Generalized Advantage Estimation for variance reduction

Related Methods:

  • AMP: Adversarial Motion Priors for stylized motion learning
  • RND: Random Network Distillation for exploration
  • Symmetry Learning: Data augmentation for symmetric behaviors

💡 Best Practice: Start with Stage 1 training in simplified environment, then gradually transition to Stage 2 with full physics. Monitor both imitation and task performance throughout training.
