amass_action_converter

Module: GBC.utils.data_preparation.amass_action_converter

This module implements the comprehensive data post-processing pipeline that transforms raw AMASS motion capture data into the GBC Standard Data Format - a unified data specification that enables consistent human-to-robot motion retargeting across different humanoid robot configurations. The module performs critical data quality enhancements including motion filtering, quaternion continuity repair, coordinate system adjustments, velocity computations, foot contact analysis, and reference height corrections.

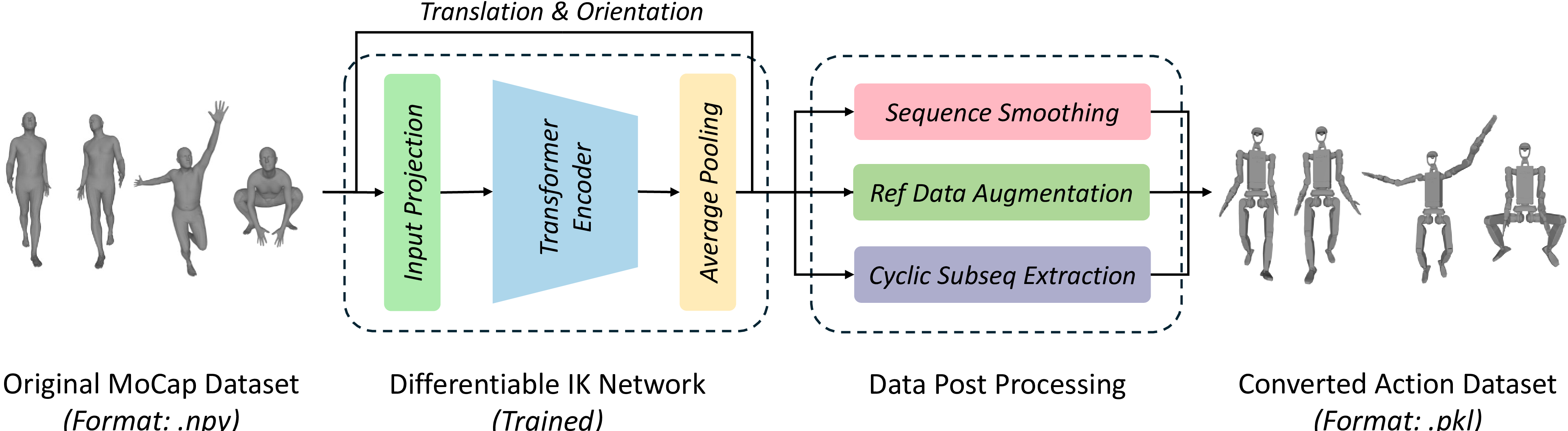

Data Processing Pipeline

🎯 GBC Standard Data Format​

The GBC Standard Data Format represents one of the key contributions of this project, providing a unified specification for humanoid robot motion data that ensures compatibility across different robot configurations and enables robust training pipelines.

📋 Standard Format Specification​

The GBC format includes the following standardized fields:

{
    # Core Motion Data
    "poses": torch.Tensor,           # [T, 66] - SMPL+H body poses (angle-axis)
    "trans": torch.Tensor,           # [T, 3] - Root position (world coordinates)
    "root_orient": torch.Tensor,     # [T, 3] - Root orientation (angle-axis)
    "actions": torch.Tensor,         # [T, N] - Robot joint actions

    # Kinematic Data
    "lin_vel": torch.Tensor,         # [T, 3] - Linear velocity (robot frame)
    "lin_vel_orig": torch.Tensor,    # [T, 3] - Linear velocity (world frame)
    "ang_vel": torch.Tensor,         # [T, 3] - Angular velocity (robot frame)
    "ang_vel_world": torch.Tensor,   # [T, 3] - Angular velocity (world frame)
    "actions_vel": torch.Tensor,     # [T, N] - Joint velocities

    # Contact and Environment
    "project_gravity": torch.Tensor, # [T, 3] - Gravity vector in robot frame
    "foot_contact": torch.Tensor,    # [T, 2] - Foot contact states

    # Metadata
    "fps": float,                    # Frame rate
    "title": str,                    # Motion sequence name
    "fpath": str                     # Original file path
}

📚 Dependencies​

This module requires the following Python packages:

  • torch - PyTorch framework for tensor operations
  • numpy - Numerical computing library
  • torchaudio_filters - Advanced signal filtering (LowPass filter)
  • scipy - Scientific computing for quaternion operations
  • human_body_prior - SMPL+H body model
  • matplotlib - Visualization for debugging and validation
  • tqdm - Progress bars for batch processing
  • GBC.utils.base.math_utils - Mathematical utilities for robotics
  • GBC.utils.base.rotation_repair - Quaternion continuity repair
  • GBC.utils.data_preparation.pose_transformer - Neural network inference
  • GBC.utils.data_preparation.robot_flip_left_right - Symmetry transformations

🔧 Core Components​

📊 TrackingDataPostProcess​

Module Name: GBC.utils.data_preparation.amass_action_converter.TrackingDataPostProcess

Definition:

class TrackingDataPostProcess:
    def __init__(self, filter_cfg: FilterCfg):
        self.cfg = filter_cfg
        self.device = filter_cfg.device
        self.lowpass = LowPass(
            cutoff=filter_cfg.filter_cutoff,
            sample_rate=filter_cfg.filter_sample_rate,
            order=filter_cfg.filter_order,
        ).to(self.device)

🔧 Core Functionality: Advanced signal processing and coordinate system transformations for motion data quality enhancement.

🎛️ Motion Filtering​

Method Signature:

def filt(self, sequence: torch.Tensor, use_padding: bool = True, window_size: int = 3) -> torch.Tensor

📥 Input Parameters:

  • sequence (torch.Tensor): Input motion sequence [T, D]
  • use_padding (bool): Apply padding to reduce edge artifacts
  • window_size (int): Hampel filter window size for outlier detection

🔧 Processing Pipeline:

# 1. Hampel filter for outlier detection and removal
sequence, has_outlier = hampel_filter(sequence, window_size=window_size)

# 2. Add epsilon to prevent torchaudio_filters zero-value bugs
epsilon = 1e-6
sequence += epsilon

# 3. Apply sophisticated padding for edge artifact reduction
if use_padding:
    pad_len = max(self.lowpass.order * 2, 10)
    # Forward padding: linear extrapolation
    forward_pad = 2 * sequence[:1] - sequence[1:pad_len+1].flip(0)
    # Backward padding: linear extrapolation
    backward_pad = 2 * sequence[-1:] - sequence[-pad_len-1:-1].flip(0)
    padded_sequence = torch.cat([forward_pad, sequence, backward_pad], dim=0)

# 4. Low-pass filtering
filtered_sequence = self.lowpass(padded_sequence.T).T

# 5. Remove padding
if use_padding:
    filtered_sequence = filtered_sequence[pad_len:-pad_len]

return filtered_sequence

🌐 Coordinate System Transformations​

Root Orientation Adjustment:

def adjust_root_orient(self, root_orient: torch.Tensor) -> torch.Tensor:
    """Transform root orientation to robot coordinate system"""

    # 1. Apply coordinate system rotation (X→Y, Y→Z, Z→X)
    rot_quat = torch.tensor([0.5, 0.5, 0.5, 0.5], dtype=torch.float32, device=self.device)
    coordinate_transform = quaternion_to_angle_axis(rot_quat.repeat(root_orient.shape[0], 1))

    # 2. Apply transformation matrix
    root_rot_mat = rot_vec_to_mat(root_orient)
    transform_mat = rot_vec_to_mat(coordinate_transform).permute(0, 2, 1)
    transformed_rot = torch.bmm(root_rot_mat, transform_mat)

    # 3. Convert back to angle-axis with continuity repair
    root_orient = rot_mat_to_vec(transformed_rot)
    root_quat = angle_axis_to_quaternion(root_orient)
    root_quat = quat_fix(root_quat)  # Ensure quaternion continuity
    root_orient = quaternion_to_angle_axis(root_quat)

    # 4. Advanced smoothing and continuity repair
    root_orient = unwrap_and_smooth_rot_vecs(root_orient, smoothing_window=5)

    return root_orient

Initial Pose Normalization:

def transform_for_intial_pose(self, tsl: torch.Tensor, rot_vec: torch.Tensor) -> tuple:
    """Apply global transform so first frame has x=0, y=0, yaw=0"""

    # 1. Compute transformation matrices for all frames
    tf_mat = self.get_batch_tf_matrix(tsl, rot_vec)

    # 2. Create inverse transformation for first frame
    inv_tf = torch.eye(4, dtype=tf_mat.dtype, device=tf_mat.device)
    inv_tf[:3, :3] = self.get_yaw_only_rot_mat(tf_mat[0, :3, :3].T)
    inv_tf[:, 3:] = -inv_tf @ tf_mat[0, :, 3:]
    inv_tf[2, 3] = 0  # Preserve Z-translation

    # 3. Apply transformation to entire sequence
    new_tf_mat = torch.einsum("ij, bjk -> bik", inv_tf, tf_mat)

    # 4. Extract normalized translation and rotation
    new_trans = new_tf_mat[:, :3, 3]
    new_rot_mat = new_tf_mat[:, :3, :3]
    new_rot_vec = rot_mat_to_vec(new_rot_mat)

    return new_trans, new_rot_vec

⚡ Velocity Computations​

Linear Velocity (Robot Frame):

def calc_lin_vel(self, trans: torch.Tensor, orient: torch.Tensor, fps: float) -> torch.Tensor:
    """Calculate linear velocity in robot coordinate frame"""

    # 1. Compute world-frame velocity
    lin_vel = torch.diff(trans, dim=0) * fps
    lin_vel = torch.cat([lin_vel, lin_vel[-1:]], dim=0)

    # 2. Transform to robot frame
    rot_quat = angle_axis_to_quaternion(orient)
    rot_quat = quat_fix(rot_quat)  # Ensure continuity
    rot_quat = self.filt(rot_quat)  # Smooth quaternions
    lin_vel = quat_rotate_inverse(rot_quat, lin_vel)

    return lin_vel

Angular Velocity (Robot Frame):

def calc_ang_vel(self, rot_vec: torch.Tensor, fps: float) -> torch.Tensor:
    """Calculate angular velocity in robot coordinate frame"""

    # 1. Convert to quaternions and ensure continuity
    rot_quat = angle_axis_to_quaternion(rot_vec)

    # 2. Compute quaternion differences
    delta_q = q_mul(rot_quat[1:], quat_inv(rot_quat[:-1]))

    # 3. Handle quaternion sign ambiguity
    neg_w_mask = delta_q[..., 0] < 0
    delta_q[neg_w_mask] *= -1.0

    # 4. Convert to axis-angle representation
    angle = 2 * torch.acos(torch.clamp(delta_q[..., 0], -1.0, 1.0))
    axis = delta_q[..., 1:]
    axis_norm = torch.norm(axis, p=2, dim=-1, keepdim=True)
    axis = axis / (axis_norm + 1e-8)
    rot_diff_vec = axis * angle.unsqueeze(-1)

    # 5. Scale by frame rate and transform to robot frame
    ang_vel = rot_diff_vec * fps
    ang_vel = torch.cat([ang_vel, ang_vel[-1:]], dim=0)
    ang_vel = quat_rotate_inverse(rot_quat, ang_vel)

    return self.filt(ang_vel)

🏭 AMASSActionConverter​

Module Name: GBC.utils.data_preparation.amass_action_converter.AMASSActionConverter

Definition:

class AMASSActionConverter:
    def __init__(self, cfg: BaseCfg, **kwargs):
        self.cfg = cfg
        self.dataset = AMASSDatasetInterpolate.from_cfg(cfg)
        self.fk = RobotKinematics(cfg.urdf_path, device=cfg.device)
        self.model = PoseTransformer(num_actions=self.fk.num_dofs, load_hands=cfg.load_hands).to(cfg.device)
        self.model.load_state_dict(torch.load(cfg.pose_transformer_path, map_location=torch.device(cfg.device)))
        self.post_process = TrackingDataPostProcess(filter_cfg=cfg.filter).to(cfg.device)
        # Additional initialization...

📥 Initialization Parameters:

  • cfg (BaseCfg): Comprehensive configuration object containing all processing parameters
  • urdf_path: Robot description file path
  • pose_transformer_path: Trained model path for pose-to-action conversion
  • export_path: Output directory for processed data
  • mapping_table: SMPL+H to robot joint correspondence
  • smplh_model_path: Human body model file path
  • filter: Signal processing configuration

🎯 Core Conversion Pipeline​

Method Signature:

def convert(self,
           foot_names: List[str],
           min_subseq_ratio: float = 0.2,
           data_correction_path: Optional[str] = None,
           data_correction_keys: Optional[Dict[str, str]] = None,
           add_flipped_data: bool = False,
           floor_contact_offset_map: Optional[Dict[str, torch.Tensor]] = None,
           foot_ground_offset: float = 0.0,
           nan_check: bool = False
          ):

📥 Input Parameters:

  • foot_names (List[str]): Robot foot link names for contact detection
  • min_subseq_ratio (float): Minimum ratio of cyclic subsequence length to total sequence length for data augmentation
  • data_correction_path (str): Path to manual data corrections
  • data_correction_keys (Dict[str, str]): Key mapping for correction data
  • add_flipped_data (bool): Generate left-right mirrored data for augmentation
  • floor_contact_offset_map (Dict[str, torch.Tensor]): Foot contact position offsets
  • foot_ground_offset (float): Ground clearance offset for foot contact
  • nan_check (bool): Enable NaN detection and handling

🔧 Processing Pipeline:

1. Dataset Loading and Cyclic Sequence Enhancement​

# Load AMASS dataset with interpolation
for i, data in enumerate(tqdm(self.dataset, desc="Converting AMASS to Actions")):
    poses = data['poses'].to(self.device)
    fps = data['fps'].item()
    title = data['title']
    fpath = data['fpath']

    # Quality filtering: reject short or low-quality sequences
    if poses.shape[0] < 30:  # Minimum 30 frames
        continue

    # Cyclic subsequence detection and extension for data augmentation
    # This finds the longest cyclic pattern (e.g., walking gait) and extends it
    # to ensure sufficient sequence length for reinforcement learning training
    longest_subseq = find_longest_cyclic_subsequence(poses, min_ratio=min_subseq_ratio)
    if longest_subseq is not None:
        start_idx, end_idx = longest_subseq
        cyclic_pattern = poses[start_idx:end_idx+1]

        # Data augmentation: extend cyclic pattern to desired length
        target_length = max(poses.shape[0], 200)  # Ensure minimum training length
        if cyclic_pattern.shape[0] > 0:
            num_cycles = target_length // cyclic_pattern.shape[0] + 1
            extended_poses = cyclic_pattern.repeat(num_cycles, 1)[:target_length]
            poses = extended_poses

2. Pose-to-Action Conversion​

@torch.no_grad()
def pose_to_action(self, pose: torch.Tensor) -> torch.Tensor:
    """Convert human poses to robot actions using trained model"""

    if len(pose.shape) == 3:
        pose = pose.squeeze(0)

    pose_body = pose[:, 3:66]  # Extract body pose (exclude root orientation)

    # Batch processing for memory efficiency
    actions = []
    for i in range(0, pose_body.shape[0], self.batch_size):
        batch = pose_body[i:i+self.batch_size]
        batch_actions = self.model(batch)
        actions.append(batch_actions)

    return torch.cat(actions, dim=0)

3. Comprehensive Post-Processing​

# Complete data enhancement pipeline
save_dict = {
    "poses": poses,
    "trans": trans,
    "root_orient": root_orient,
    "actions": actions,
    "fps": fps,
    "title": title,
    "fpath": fpath
}

# Apply post-processing transformations
if self.fk.get_contact_links():
    contact_tf_mats = self.fk.get_contact_tf_matrices()
    save_dict = self.post_process(save_dict, contact_tf_mats=contact_tf_mats, filter_pose=True)
else:
    save_dict = self.post_process(save_dict, filter_pose=True)

4. Foot Contact Analysis​

# Foot contact detection using forward kinematics
robot_foot_positions = self.fk(actions, link_names=foot_names)
foot_velocities = torch.diff(robot_foot_positions, dim=1) * fps

# Contact detection based on velocity and height thresholds
contact_threshold_vel = 0.05  # m/s
contact_threshold_height = foot_ground_offset + 0.01  # m

foot_contact = []
for foot_idx, foot_name in enumerate(foot_names):
    foot_vel = torch.norm(foot_velocities[:, foot_idx], dim=-1)
    foot_height = robot_foot_positions[:, foot_idx, 2]

    # Contact when velocity is low AND foot is near ground
    contact = (foot_vel < contact_threshold_vel) & (foot_height < contact_threshold_height)
    foot_contact.append(contact)

save_dict["foot_contact"] = torch.stack(foot_contact, dim=-1)

5. Data Augmentation (Optional)​

if add_flipped_data and self.action_flip_left_right is not None:
    # Generate left-right mirrored version
    flipped_dict = self.flip_pose_actions_left_right(deepcopy(save_dict))

    # Save both original and flipped versions
    original_path = os.path.join(self.export_path, fpath, f"{title}_poses.pkl")
    flipped_path = os.path.join(self.export_path, fpath, f"{title}_flipped_poses.pkl")

    torch.save(save_dict, original_path)
    torch.save(flipped_dict, flipped_path)

💡 Usage Examples​

🚀 Basic Configuration and Usage​

from GBC.utils.data_preparation.amass_action_converter import AMASSActionConverter, AMASSActionConverterCfg
from GBC.utils.data_preparation.robot_flip_left_right import YourFlipperModule
from GBC.utils.base.base_fk import RobotKinematics

# Define robot-specific joint mapping
mapping_table = {
    "Pelvis": "base_link",
    "L_Hip": "l_hip_yaw_link",
    "R_Hip": "r_hip_yaw_link",
    "L_Knee": "l_knee_link",
    "R_Knee": "r_knee_link",
    "L_Ankle": "l_ankle_pitch_link",
    "R_Ankle": "r_ankle_pitch_link",
    "L_Shoulder": "l_arm_roll_link",
    "R_Shoulder": "r_arm_roll_link",
    "L_Elbow": "l_elbow_roll_link",
    "R_Elbow": "r_elbow_roll_link",
    "L_Wrist": "l_wrist_roll_link",
    "R_Wrist": "r_wrist_roll_link",
}

# Initialize configuration
cfg = AMASSActionConverterCfg(
    urdf_path="/path/to/robot.urdf",
    pose_transformer_path="/path/to/trained_model.pt",
    export_path="/output/converted_actions",
    mapping_table=mapping_table,
    smplh_model_path="/path/to/smplh/model.npz",
    dmpls_model_path="/path/to/dmpls/model.npz",
    smpl_fits_dir="/path/to/fitted_params.pt",
    device="cuda:0"
)

# Specify dataset subset using regex patterns
cfg.specialize_dir = ["ACCAD/*", "CMU/*"]  # Process specific datasets

# Initialize converter
converter = AMASSActionConverter.from_cfg(cfg)

🔄 Advanced Configuration with Symmetry​

# Configure bilateral symmetry for data augmentation
flipper = YourFlipperModule()
fk = RobotKinematics(cfg.urdf_path)
flipper.prepare_flip_joint_ids(fk.get_dof_names())
converter.set_flipper(flipper)

# Define foot contact parameters
foot_names = ["l_ankle_pitch_link", "r_ankle_pitch_link"]
foot_ground_offset = 0.05  # 5cm ground clearance

# Execute comprehensive conversion pipeline
converter.convert(
    foot_names=foot_names,
    foot_ground_offset=foot_ground_offset,
    add_flipped_data=True,  # Generate mirrored data
    floor_contact_offset_map={
        "l_ankle_pitch_link": torch.Tensor([0, 0, -foot_ground_offset]),
        "r_ankle_pitch_link": torch.Tensor([0, 0, -foot_ground_offset]),
    },
    min_subseq_ratio=0.3,  # Require cycle to be at least 30% of sequence for quality augmentation
    nan_check=True  # Enable NaN detection
)

🎯 Production Pipeline Example​

# Production-grade configuration based on Turin robot
def setup_turin_converter():
    """Setup converter for Turin humanoid robot"""

    # Turin-specific configuration
    mapping_table = {
        "Pelvis": "base_link",
        "L_Hip": "l_hip_yaw_link", "R_Hip": "r_hip_yaw_link",
        "L_Knee": "l_knee_link", "R_Knee": "r_knee_link",
        "L_Ankle": "l_ankle_pitch_link", "R_Ankle": "r_ankle_pitch_link",
        "L_Shoulder": "l_arm_roll_link", "R_Shoulder": "r_arm_roll_link",
        "L_Elbow": "l_elbow_roll_link", "R_Elbow": "r_elbow_roll_link",
        "L_Wrist": "l_wrist_roll_link", "R_Wrist": "r_wrist_roll_link",
    }

    cfg = AMASSActionConverterCfg(
        urdf_path="/path/to/turin_humanoid.urdf",
        pose_transformer_path="/path/to/turin_model.pt",
        export_path="/data/turin_converted",
        mapping_table=mapping_table,
        smplh_model_path=DATA_PATHS.smplh_model_path,
        dmpls_model_path=DATA_PATHS.dmpls_model_path,
        smpl_fits_dir=DATA_PATHS.smplh_fit_result_path,
        device="cuda:1"
    )

    # Process high-quality motion datasets
    cfg.specialize_dir = ["ACCAD/*"]  # ACCAD contains high-quality locomotion data

    return cfg

# Initialize and execute
cfg = setup_turin_converter()
converter = AMASSActionConverter.from_cfg(cfg)

# Configure Turin-specific symmetry
from GBC.utils.data_preparation.robot_flip_left_right import TurinV3FlipLeftRight
flipper = TurinV3FlipLeftRight()
fk = RobotKinematics(cfg.urdf_path)
flipper.prepare_flip_joint_ids(fk.get_dof_names())
converter.set_flipper(flipper)

# Execute with Turin-specific parameters
foot_names = ["l_ankle_pitch_link", "r_ankle_pitch_link"]
foot_ground_offset = 0.05

converter.convert(
    foot_names=foot_names,
    foot_ground_offset=foot_ground_offset,
    add_flipped_data=True,
    floor_contact_offset_map={
        "l_ankle_pitch_link": torch.Tensor([0, 0, -foot_ground_offset]),
        "r_ankle_pitch_link": torch.Tensor([0, 0, -foot_ground_offset]),
    },
    min_subseq_ratio=0.25,  # Accept shorter cycles for extension-based augmentation
    nan_check=True
)

🔧 Advanced Features​

📊 Data Quality Validation​

Cyclic Subsequence Detection and Extension:

def find_longest_cyclic_subsequence(poses: torch.Tensor, min_ratio: float = 0.2) -> Optional[Tuple[int, int]]:
    """
    Find longest cyclic subsequence for data augmentation in reinforcement learning

    This function identifies the longest repeating pattern (e.g., walking gait cycle)
    within a motion sequence. The detected cyclic pattern can then be extended/repeated
    to create longer training sequences, which is crucial for RL algorithms that
    require sufficient sequence length for effective learning.

    Args:
        poses: Input motion sequence [T, 66]
        min_ratio: Minimum ratio of cyclic length to total sequence length
                  (e.g., 0.2 means cyclic pattern must be at least 20% of total length)

    Returns:
        Tuple of (start_idx, end_idx) for the longest cyclic pattern, or None
    """

    # Focus on key locomotion joints for cycle detection
    hip_knee_joints = poses[:, [6, 9, 12, 15]]  # L_Hip, R_Hip, L_Knee, R_Knee

    # Autocorrelation analysis for period detection
    signal = torch.mean(hip_knee_joints, dim=1)
    autocorr = torch.correlate(signal, signal, mode='full')

    # Find peaks indicating cyclic patterns
    peaks = find_peaks(autocorr.cpu().numpy(), distance=len(signal)//4)

    if len(peaks) > 0:
        period = peaks[0]
        cycle_length = period

        # Check if cycle meets minimum ratio requirement
        if cycle_length >= len(signal) * min_ratio:
            return (0, cycle_length)

        # For data augmentation: even short cycles can be valuable if extended
        if cycle_length > 10:  # Minimum meaningful cycle length
            return (0, cycle_length)

    return None


def extend_cyclic_sequence(cyclic_pattern: torch.Tensor, target_length: int) -> torch.Tensor:
    """
    Extend a cyclic motion pattern to desired length for RL training

    This data augmentation technique repeats a detected cyclic pattern
    (e.g., walking steps) to create longer sequences suitable for
    reinforcement learning training, where longer episodes improve
    learning stability and sample efficiency.

    Args:
        cyclic_pattern: Detected cyclic motion pattern [C, 66]
        target_length: Desired output sequence length

    Returns:
        Extended sequence [target_length, 66]
    """
    if cyclic_pattern.shape[0] == 0:
        return cyclic_pattern

    # Calculate number of repetitions needed
    num_cycles = target_length // cyclic_pattern.shape[0] + 1

    # Repeat pattern and trim to exact target length
    extended_sequence = cyclic_pattern.repeat(num_cycles, 1)[:target_length]

    # Smooth transitions between cycle boundaries for continuity
    if num_cycles > 1:
        cycle_len = cyclic_pattern.shape[0]
        for i in range(1, num_cycles):
            boundary_idx = i * cycle_len
            if boundary_idx < extended_sequence.shape[0]:
                # Apply smoothing window around cycle boundaries
                smooth_window = min(5, cycle_len // 4)
                for j in range(smooth_window):
                    if boundary_idx + j < extended_sequence.shape[0]:
                        alpha = j / smooth_window
                        extended_sequence[boundary_idx + j] = (
                            (1 - alpha) * extended_sequence[boundary_idx + j] +
                            alpha * extended_sequence[boundary_idx + j - cycle_len]
                        )

    return extended_sequence

NaN Detection and Handling:

def check_nan_values(data_dict: Dict[str, torch.Tensor]) -> bool:
    """Comprehensive NaN detection across all data fields"""

    nan_detected = False
    for key, value in data_dict.items():
        if isinstance(value, torch.Tensor):
            if torch.isnan(value).any():
                print(f"NaN detected in {key}")
                nan_detected = True

                # Interpolation-based repair for small gaps
                if key in ["poses", "trans", "actions"]:
                    data_dict[key] = interpolate_nan_values(value)

    return not nan_detected

🎨 Visualization and Debugging​

Motion Trajectory Visualization:

def visualize_trajectory(self, trans: torch.Tensor, root_orient: torch.Tensor,
                        axis_length: float, title: str, save_dir: str = None):
    """Visualize robot trajectory with orientation indicators"""

    fig = plt.figure(figsize=(12, 8))
    ax = fig.add_subplot(111, projection='3d')

    # Plot trajectory
    ax.plot(trans[:, 0], trans[:, 1], trans[:, 2], 'b-', linewidth=2, label='Trajectory')

    # Add orientation arrows at key frames
    step = max(1, len(trans) // 20)
    for i in range(0, len(trans), step):
        rot_mat = rot_vec_to_mat(root_orient[i:i+1])

        # Draw coordinate frame
        origin = trans[i]
        x_axis = origin + rot_mat[0, :, 0] * axis_length
        y_axis = origin + rot_mat[0, :, 1] * axis_length
        z_axis = origin + rot_mat[0, :, 2] * axis_length

        ax.quiver(*origin, *(x_axis-origin), color='r', arrow_length_ratio=0.1)
        ax.quiver(*origin, *(y_axis-origin), color='g', arrow_length_ratio=0.1)
        ax.quiver(*origin, *(z_axis-origin), color='b', arrow_length_ratio=0.1)

    ax.set_xlabel('X (m)')
    ax.set_ylabel('Y (m)')
    ax.set_zlabel('Z (m)')
    ax.set_title(f'{title} - Robot Trajectory')

    if save_dir:
        plt.savefig(os.path.join(save_dir, f'{title}_trajectory.png'), dpi=300)
    plt.show()

Filter Response Analysis:

def visualize_filter(self, origin: torch.Tensor, filtered: torch.Tensor,
                    max_duration: float = 25.0, title: str = "Filter Visualization",
                    save_dir: str = None, cyclic_subseq: Tuple = None):
    """Compare original vs filtered motion data"""

    time_steps = min(int(max_duration * 30), origin.shape[0])  # 30 fps assumption
    t = torch.arange(time_steps) / 30.0

    fig, axes = plt.subplots(origin.shape[1], 1, figsize=(15, 3*origin.shape[1]))

    for i in range(origin.shape[1]):
        axes[i].plot(t, origin[:time_steps, i].cpu(), 'b-', alpha=0.7, label='Original')
        axes[i].plot(t, filtered[:time_steps, i].cpu(), 'r-', linewidth=2, label='Filtered')

        if cyclic_subseq:
            start, end = cyclic_subseq
            axes[i].axvspan(start/30, end/30, alpha=0.3, color='green', label='Cyclic Subsequence')

        axes[i].set_ylabel(f'Joint {i}')
        axes[i].legend()
        axes[i].grid(True, alpha=0.3)

    axes[-1].set_xlabel('Time (s)')
    plt.suptitle(f'{title} - Filter Response')
    plt.tight_layout()

    if save_dir:
        plt.savefig(os.path.join(save_dir, f'{title}_filter_comparison.png'), dpi=300)
    plt.show()

🚨 Best Practices​

✅ Data Processing Guidelines​

  1. Quality Filtering: Use appropriate min_subseq_ratio values (0.2-0.3) to ensure cyclic patterns are substantial enough for meaningful data augmentation
  2. Coordinate Systems: Ensure consistent coordinate system transformations across all robots
  3. Contact Detection: Tune foot_ground_offset based on robot foot geometry
  4. Filtering Parameters: Adjust filter cutoff frequencies based on motion type and robot dynamics
  5. Memory Management: Use appropriate batch sizes for pose-to-action conversion

🔧 Configuration Optimization​

Robot-Specific Tuning:

# Example configuration for different robot types
ROBOT_CONFIGS = {
    "turin_v3": {
        "foot_ground_offset": 0.05,
        "filter_cutoff": 6.0,
        "min_subseq_ratio": 0.25
    },
    "unitree_h1": {
        "foot_ground_offset": 0.03,
        "filter_cutoff": 8.0,
        "min_subseq_ratio": 0.3
    }
}

def get_robot_config(robot_type: str) -> Dict:
    """Get optimized configuration for specific robot"""
    return ROBOT_CONFIGS.get(robot_type, ROBOT_CONFIGS["turin_v3"])

🐛 Troubleshooting​

Common Issues and Solutions:

  1. Memory Overflow:

    # Reduce batch size in configuration
    cfg.batch_size = 32  # Instead of 64 or 128

    # Process smaller dataset subsets
    cfg.specialize_dir = ["ACCAD/Female1Walking_c3d"]  # Specific subset

  2. Poor Contact Detection:

    # Adjust contact thresholds
    contact_threshold_vel = 0.02  # Lower for more sensitive detection
    contact_threshold_height = foot_ground_offset + 0.005  # Tighter height tolerance

  3. Quaternion Discontinuities:

    # Enable advanced quaternion repair
    root_quat = quat_fix(root_quat)
    root_orient = unwrap_and_smooth_rot_vecs(root_orient, smoothing_window=7)

  4. NaN Values in Output:

    # Enable comprehensive NaN checking
    converter.convert(
        foot_names=foot_names,
        nan_check=True,  # Enable detection
        # Additional parameters...
    )

This comprehensive processing pipeline ensures that raw AMASS motion capture data is transformed into high-quality, robot-ready motion sequences that conform to the GBC Standard Data Format, enabling robust and consistent human-to-robot motion retargeting across diverse humanoid platforms.
