create_smplh

Module: GBC.utils.data_preparation.create_smplh

This module provides the core functionality for fitting SMPL+H (Skinned Multi-Person Linear model with Hands) body shape parameters to humanoid robot skeletons. The fitting process is essential for transferring human motion capture data to robot control, enabling human-robot motion imitation and behavior cloning.

📚 Dependencies

This module requires the following Python packages:

torch - PyTorch framework for optimization
numpy - Numerical computations
scipy - Spatial transformations and scientific computing
human_body_prior - SMPL+H body model implementation
body_visualizer - Mesh visualization tools
trimesh - 3D mesh processing
open3d - 3D data processing and visualization
opencv-python - Computer vision operations
GBC.utils.base.base_fk - Robot forward kinematics

🏗️ Core Class

🤖 SMPLHFitter

Module Name: GBC.utils.data_preparation.create_smplh.SMPLHFitter

Definition:

class SMPLHFitter:
    def __init__(self,
                 smplh_model_path: str,
                 dmpls_model_path: str,
                 urdf_path: str,
                 device: str = "cuda")

📥 Input:

smplh_model_path (str): Path to SMPL+H model file (.npz)
dmpls_model_path (str): Path to DMPL muscle model file (.npz)
urdf_path (str): Path to robot URDF description file
device (str): Computing device ("cuda" or "cpu"). Default: "cuda"

🔧 Functionality: Main class for fitting SMPL+H human body model parameters to match humanoid robot skeleton geometry. This process creates a mapping between human body joints and robot links, enabling motion transfer from human demonstrations to robot execution.

💡 Key Features:

Automated body shape parameter optimization (beta coefficients)
Muscle dynamics parameter fitting (DMPL coefficients)
Scale factor optimization for size matching
Multi-pose fitting support for improved accuracy
3D visualization tools for validation

🎯 Critical Configuration Parameters

🗺️ mapping_table - Joint Mapping Configuration

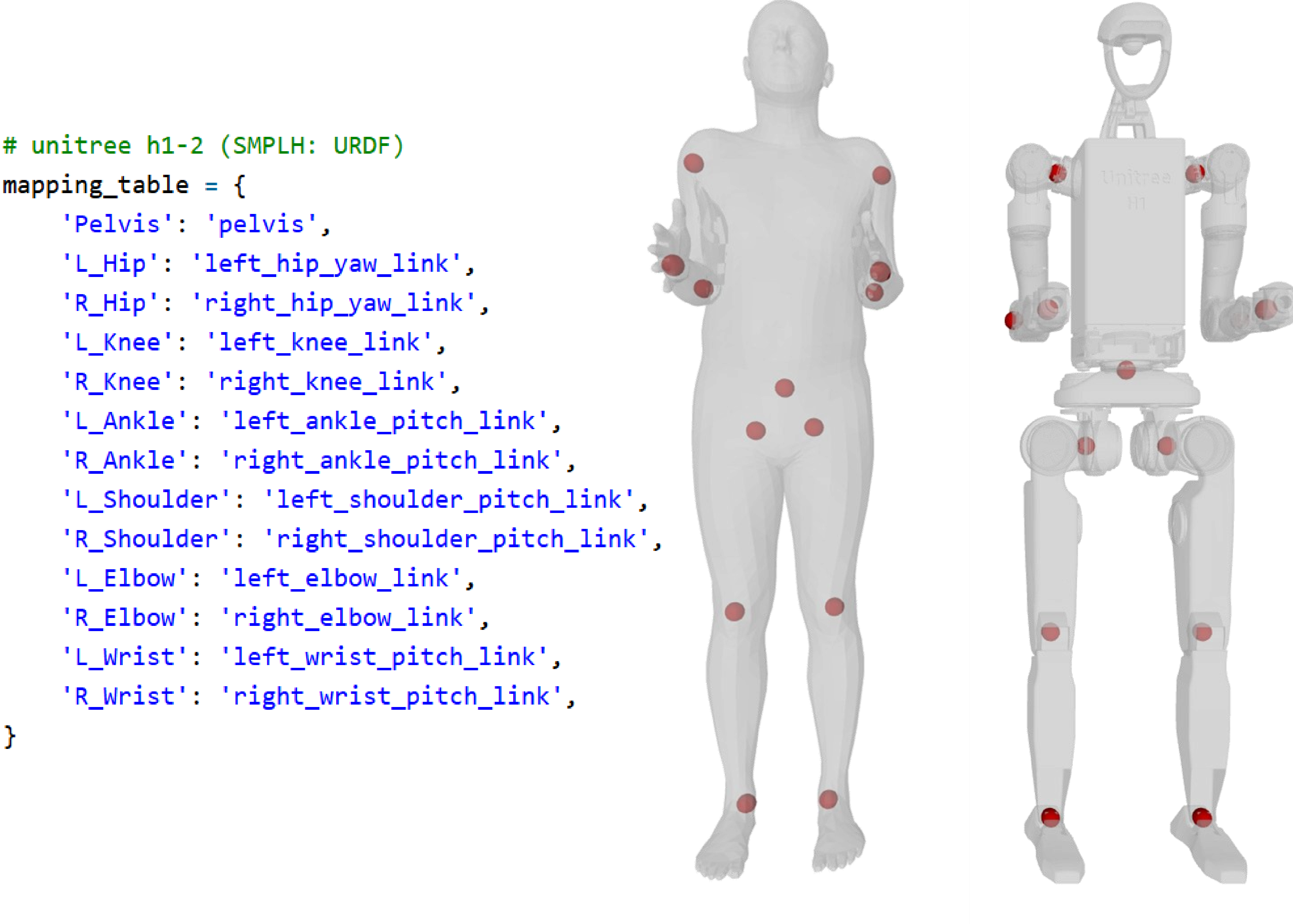

The following example shows the mapping for a Unitree robot: Unitree Joint Map

⚠️ CRITICAL PARAMETER - Incorrect mapping will prevent training

Type: Dict[str, str]
Purpose: Maps SMPL+H joint names to corresponding robot link names

🔧 Functionality: This is the most critical configuration parameter. It establishes the correspondence between SMPL+H body joints and robot links. Incorrect mapping will result in:

Failed motion transfer
Inconsistent joint positions
Training failures in downstream tasks

📋 SMPL+H Available Joints:

smplh_body_names = [
    'Pelvis', 'L_Hip', 'R_Hip', 'Torso', 'L_Knee', 'R_Knee',
    'Spine', 'L_Ankle', 'R_Ankle', 'Chest', 'L_Toe', 'R_Toe',
    'Neck', 'L_Thorax', 'R_Thorax', 'Head', 'L_Shoulder',
    'R_Shoulder', 'L_Elbow', 'R_Elbow', 'L_Wrist', 'R_Wrist'
]

smplh_hand_names = ['L_Index1', 'L_Index2', 'L_Index3', 'L_Middle1',
 'L_Middle2', 'L_Middle3', 'L_Pinky1', 'L_Pinky2',
  'L_Pinky3', 'L_Ring1', 'L_Ring2', 'L_Ring3',
   'L_Thumb1', 'L_Thumb2', 'L_Thumb3', 'R_Index1', 'R_Index2',
    'R_Index3', 'R_Middle1', 'R_Middle2', 'R_Middle3', 'R_Pinky1',
     'R_Pinky2', 'R_Pinky3', 'R_Ring1', 'R_Ring2',
     'R_Ring3', 'R_Thumb1', 'R_Thumb2', 'R_Thumb3']

💡 Mapping Strategy:

Pelvis → Base Link: Root body connection
Hip Joints → Hip Links: Leg attachment points
Knee/Ankle → Corresponding Links: Leg chain continuity
Shoulder/Elbow/Wrist → Arm Links: Arm chain mapping
Optional Joints: Head, Toe, Torso (if robot has corresponding links)

🔄 rotation_map - SMPLH Joint Alignment

Type: Dict[str, List[float]]
Purpose: Rotates SMPLH joints to match robot's zero pose configuration

🔧 Functionality: Adjusts SMPLH joint orientations to align with the robot's default pose. Each rotation is specified as Euler angles [x, y, z] in radians.

💡 Common Rotations:

Elbow Joints: Often need π/2 rotations to match robot arm orientations
Shoulder Joints: May require adjustments for different arm rest positions
Hip Joints: Alignment for different leg orientations

🏃 t_pose_action - Robot T-Pose Configuration

Type: torch.Tensor
Purpose: Joint actions to move robot into T-pose for fitting

🔧 Functionality: Defines the joint positions that place the robot in a T-pose (arms extended horizontally). This pose provides better correspondence with SMPL+H's default pose for fitting.

💡 Typical T-Pose Actions:

Shoulder Roll: ±π/2 to extend arms horizontally
Elbow: π/2 to straighten arms
Other Joints: Usually remain at zero

⚖️ joint_weights - Fitting Priority Weights

Type: torch.Tensor
Purpose: Relative importance weights for different joints during optimization

🔧 Functionality: Determines the emphasis placed on matching each joint during the fitting process. Higher weights mean the optimizer prioritizes accuracy for those joints.

💡 Weight Strategy:

End Effectors (hands, feet): Higher weights (2.0-4.0) for precise positioning
Major Joints (knees, elbows): Medium weights (1.5) for structural accuracy
Base Joints (pelvis, shoulders): Standard weights (1.0) for general alignment

🔧 Core Methods

🎯 set_mapping_table

Definition:

def set_mapping_table(self, mapping_table: Dict[str, str]) -> None

📥 Input:

mapping_table (Dict[str, str]): Joint name mapping from SMPLH to robot

🔧 Functionality: Sets the critical joint mapping between SMPLH and robot. Must be called before fitting.

🎨 fit

Definition:

def fit(self,
        max_iter: int = 1000,
        lr: float = 0.01,
        tol: float = 1e-6,
        verbose: bool = False,
        offset_map: Optional[Dict[str, torch.Tensor]] = None,
        rotation_map: Optional[Dict[str, List[float]]] = None,
        t_pose_action: Optional[torch.Tensor] = None,
        additional_fitting_poses: Optional[List[Tuple[Dict[str, torch.Tensor], torch.Tensor]]] = None,
        joint_weights: Optional[torch.Tensor] = None
        ) -> Dict[str, torch.Tensor]

📥 Input:

max_iter (int): Maximum optimization iterations. Default: 1000
lr (float): Learning rate for optimization. Default: 0.01
tol (float): Convergence tolerance. Default: 1e-6
verbose (bool): Print fitting progress. Default: False
offset_map (Dict[str, torch.Tensor]): Position offsets for robot links
rotation_map (Dict[str, List[float]]): SMPLH joint rotations for alignment
t_pose_action (torch.Tensor): Robot joint actions for T-pose
additional_fitting_poses (List): Extra poses for multi-pose fitting
joint_weights (torch.Tensor): Importance weights for joints

📤 Output:

fit_result (Dict[str, torch.Tensor]): Optimized parameters (beta, dmpls, scale)

🔧 Functionality: Main optimization routine that fits SMPL+H body shape parameters to match robot skeleton geometry. Uses gradient-based optimization to minimize joint position differences.

👁️ Visualization Methods

visualize_open3d()

Interactive 3D visualization of fitted SMPL+H model with robot joint positions

visualize_open3d_tpose()

Visualization of T-pose alignment between SMPL+H and robot

visualize_fit_model()

Rendered mesh visualization of the fitted body model

💾 save_fit_result / load_fit_result

Functionality: Save and load optimized fitting parameters for reuse across training sessions.

💡 Complete Usage Example

Based on the Turin humanoid robot configuration:

import torch
import numpy as np
from GBC.utils.data_preparation.create_smplh import SMPLHFitter

# Initialize fitter
device = 'cuda'
fitter = SMPLHFitter(
    smplh_model_path="/path/to/smplh/male/model.npz",
    dmpls_model_path="/path/to/dmpls/male/model.npz",
    urdf_path="/path/to/turin_humanoid.urdf",
    device=device
)

# 1. CRITICAL: Set joint mapping (Turin robot example)
mapping_table = {
    "Pelvis": "base_link",
    "L_Hip": "l_hip_yaw_link",
    "R_Hip": "r_hip_yaw_link",
    "L_Knee": "l_knee_link",
    "R_Knee": "r_knee_link",
    "L_Ankle": "l_ankle_pitch_link",
    "R_Ankle": "r_ankle_pitch_link",
    "L_Shoulder": "l_arm_roll_link",
    "R_Shoulder": "r_arm_roll_link",
    "L_Elbow": "l_elbow_roll_link",
    "R_Elbow": "r_elbow_roll_link",
    "L_Wrist": "l_wrist_roll_link",
    "R_Wrist": "r_wrist_roll_link",
}

# 2. Configure SMPLH joint rotations for alignment
rotation_map = {
    "L_Shoulder": [0, 0, np.pi / 10],  # Slight outward rotation
    "R_Shoulder": [0, 0, -np.pi / 10], # Slight outward rotation
}

# 3. Set robot T-pose action
t_pose_action = torch.zeros(fitter.robot.num_dofs).to(device)
dof_names = fitter.robot.get_dof_names()
t_pose_action[dof_names.index("l_arm_roll")] = -np.pi / 10
t_pose_action[dof_names.index("r_arm_roll")] = np.pi / 10

# 4. Configure joint weights (critical for end effector accuracy)
joint_weights = torch.tensor([
    1.0,  # Pelvis - base reference
    1.0,  # L_Hip - structural
    1.0,  # R_Hip - structural
    1.5,  # L_Knee - important for leg kinematics
    1.5,  # R_Knee - important for leg kinematics
    4.0,  # L_Ankle - end effector, high precision needed
    4.0,  # R_Ankle - end effector, high precision needed
    1.0,  # L_Shoulder - structural
    1.0,  # R_Shoulder - structural
    1.5,  # L_Elbow - important for arm kinematics
    1.5,  # R_Elbow - important for arm kinematics
    2.0,  # L_Wrist - end effector, precision needed
    2.0,  # R_Wrist - end effector, precision needed
])

# 5. Execute fitting process
fitter.set_mapping_table(mapping_table)
fit_result = fitter.fit(
    max_iter=30000,
    verbose=True,
    lr=0.01,
    rotation_map=rotation_map,
    t_pose_action=t_pose_action,
    joint_weights=joint_weights
)

# 6. Save results for training
fitter.save_fit_result("fit_turin/best_fit_30000.pt")

# 7. Visualize results
fitter.visualize_open3d()  # Interactive 3D view
fitter.visualize_open3d_tpose()  # T-pose alignment check

⚠️ Critical Setup Guidelines

🎯 Joint Mapping Verification

ESSENTIAL STEP: Verify mapping correctness before training

Visual Inspection: Use visualize_open3d() to check joint alignments
T-Pose Check: Verify T-pose correspondence with visualize_open3d_tpose()
Joint Order: Ensure consistent left/right naming conventions
Missing Joints: Some SMPL+H joints may not have robot equivalents (skip them)

📊 Weight Tuning Strategy

End Effector Priority (Weights: 2.0-4.0):

Hands (wrists) for manipulation tasks
Feet (ankles) for locomotion stability

Structural Joints (Weights: 1.0-1.5):

Hips, shoulders for overall posture
Knees, elbows for kinematic chains

Start Simple: Basic mapping with default weights
Monitor Convergence: Target loss around 0.05 per pose
Visual Validation: Check alignment quality
Weight Adjustment: Increase weights for poorly aligned critical joints
Multi-Pose Fitting: Add additional poses for complex robots
Final Validation: Verify with actual motion transfer

📊 Convergence Monitoring

⚠️ Critical Performance Indicators:

Optimal Loss: 0.05 ± 0.03 per pose indicates successful fitting
Configuration Issues: Loss > 0.1 suggests mapping or weight problems
Excellent Fit: Loss < 0.02 indicates very precise alignment (usually not likely to happen)

💡 Troubleshooting by Loss Values:

Loss 0.15-0.5: Check joint mapping accuracy
Loss 0.1-0.15: Adjust joint weights for critical joints
Loss > 0.5: Verify URDF structure and SMPL+H joint correspondence

🚨 Common Issues and Solutions

❌ Poor Joint Alignment

Cause: Incorrect mapping or insufficient joint weights
Solution: Verify mapping table and increase weights for misaligned joints

❌ Scale Mismatch

Cause: Significant size difference between SMPL+H and robot
Solution: Check scale factor in fit results, consider robot-specific adjustments

❌ Convergence Issues

Cause: Learning rate too high or conflicting constraints
Solution: Reduce learning rate, check joint weight balance

⚠️ Expected Convergence Values:

Target Loss: ~0.05 per pose for proper fitting
Acceptable Range: 0.02-0.08 depending on robot complexity
Warning Signs: Loss > 0.1 indicates configuration problems

❌ Training Failures

Cause: Incorrect joint mapping preventing motion transfer
Solution: Re-verify mapping table against robot URDF structure

🎯 Integration with Training Pipeline

The fitted SMPL+H parameters are essential for:

Motion Retargeting: Converting human motion to robot joint commands
Behavior Cloning: Training policies from human demonstrations
Simulation Setup: Accurate human-robot correspondence in training environments
Evaluation Metrics: Measuring motion similarity between human and robot

Proper SMPL+H fitting is the foundation for successful human-to-robot motion transfer in the GBC framework.

📚 Dependencies​

🏗️ Core Class​

🤖 SMPLHFitter​

🎯 Critical Configuration Parameters​

🗺️ mapping_table - Joint Mapping Configuration​

🔄 rotation_map - SMPLH Joint Alignment​

🏃 t_pose_action - Robot T-Pose Configuration​

⚖️ joint_weights - Fitting Priority Weights​

🔧 Core Methods​

🎯 set_mapping_table​

🎨 fit​

👁️ Visualization Methods​

visualize_open3d()​

visualize_open3d_tpose()​

visualize_fit_model()​

💾 save_fit_result / load_fit_result​

💡 Complete Usage Example​

⚠️ Critical Setup Guidelines​

🎯 Joint Mapping Verification​

📊 Weight Tuning Strategy​

🔄 Iterative Refinement​

📊 Convergence Monitoring​

🚨 Common Issues and Solutions​

❌ Poor Joint Alignment​

❌ Scale Mismatch​

❌ Convergence Issues​

❌ Training Failures​

🎯 Integration with Training Pipeline​

📚 Dependencies

🏗️ Core Class

🤖 SMPLHFitter

🎯 Critical Configuration Parameters

🗺️ mapping_table - Joint Mapping Configuration

🔄 rotation_map - SMPLH Joint Alignment

🏃 t_pose_action - Robot T-Pose Configuration

⚖️ joint_weights - Fitting Priority Weights

🔧 Core Methods

🎯 set_mapping_table

🎨 fit

👁️ Visualization Methods

visualize_open3d()

visualize_open3d_tpose()

visualize_fit_model()

💾 save_fit_result / load_fit_result

💡 Complete Usage Example

⚠️ Critical Setup Guidelines

🎯 Joint Mapping Verification

📊 Weight Tuning Strategy

🔄 Iterative Refinement

📊 Convergence Monitoring

🚨 Common Issues and Solutions

❌ Poor Joint Alignment

❌ Scale Mismatch

❌ Convergence Issues

❌ Training Failures

🎯 Integration with Training Pipeline
